T he originators of aerodynamic light-weight honey-combed resinous luff support systems since 1971.

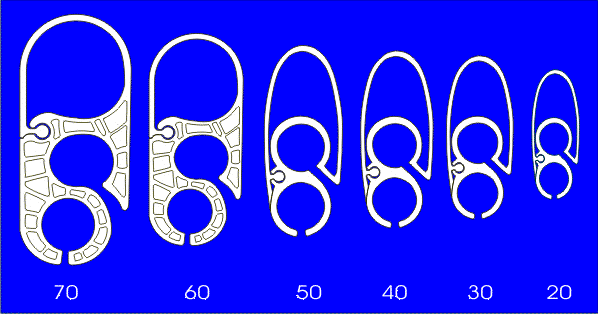

  All Head Foil sized and grouped

               Head Foils® actual sizes shown above.

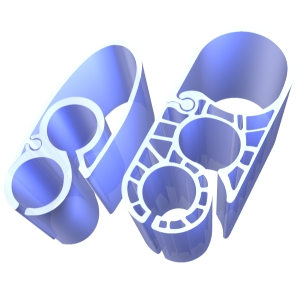

  Head Foil 2 30-50 Representative & HF 2 Honey-combed

      Key Benefits:

[Bullet] Enhanced Aerodynamics
  [Bullet] Fast and Efficient Sail Changes
  [Bullet] Light-weight Honey-combed Construction
  [Bullet] Sea Tests Show Aerodynamic Benefits
  • `Head Foil systems HF2 20 - 50 shown on left and honey-comb HF2 60-70 shown on right.
    • Product Installation:

    2015 Head Foil® Prices:

    Head Foil®
    System #

    Length of Foil
    Extrusion

    Weights/unit length

    Maximum Head Stay Diameter

    Foil Tape Diameter *

    US Dollars$

    Meters

    Feet

    lb./ft.

    kg./m.

    Wire/Carbon/PBO

    rod

    size

    mm.

    inch

    Complete Systemand Canada). **

    Resin Foil only ***
    mm. inch
    HF2 20-36 11 36 0.076 0.112 5 3/16 -6    5 0.197 360 240
    HF2 30-46 14 46 0.116 0.174 7 9/32 -12    6 0.236 450 335
    HF2 40-56 17 56 0.120 0.175 8 5/16 -17    6 0.236 540 420
    HF2 50-65 20 65 0.175 0.261 10 3/8 -22   7 0.275 740 590
    HF2 60-65 20 65 0.200 0.298 13.1 - 15.0 0.52 - 0.56 40 - 48   7 0.275 Call Call
    HF2 70-85 26 85 0.280 0.417 16.0 - 17.3 0.63 - 0.68 60 - 62   7 0.275 Call Call
    * Finished leading edge diameter of Foil Tape
    ** System Includes: Honeycomb aerofoil section, stainless prefeed and feeder (prefeeder not included with the HF2 60), bolts, ball, spring pins, spacer tubes and installation instructions. Special lengths - add 15% to price.
    *** Replacement honeycomb aerofoil includes spacer tubes, bolts and installation instructions. Special lengths - add 15% to price.
    [/_private/navbar.htm]

    [Dividing Line Image]

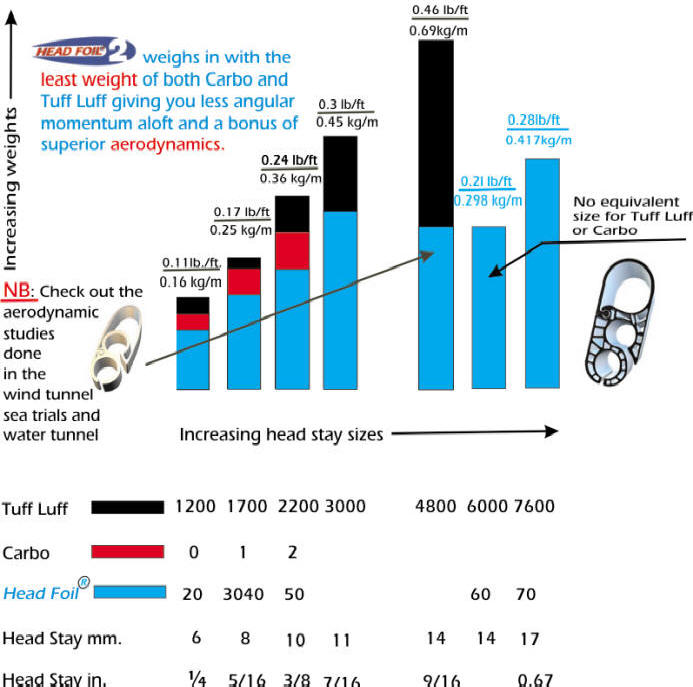

      Head Foil vs Tuff Luff and Carbo
































    Order Information:

    NB: E-mail is most efficient way to order.  Please provide your name and phone. You will be contacted by return phone call within the day.

            rolf@headfoil.com      eric@headfoil.com

    Head Foil Corporation:

    1010 South 7th Street

    Lake City MN 55041, U.S.A.

     Phone : Rolf, 507 273 5600     Eric, 651 345 3862
